Lessons from Past Climate Predictions: William Kellogg

Posted on 20 July 2011 by dana1981

In 1979, William Kellogg authored an extensive review paper summarizing the state of climate modeling at the time.  Among the studies referenced in Kellogg's work was Wallace Broecker's 1975 study which we previously examined in the Lessons from Past Climate Predictions series.

General Climate Model Review

Kellogg's review discussed the fact that in the late 1970s, climate models were still relatively simple and excluded or did not accurately reflect some important feedbacks (such as cloud cover changes); however, they did include the feedback from albedo (reflectivity) changes due to retreating or advancing ice in response to changing temperatures.

As in Broecker's 1975 study, Kellogg correctly identified that carbon dioxide represents the most significant human impact on the global climate.  However, Kellogg also stated with a fair amount of confidence that aerosols should have a net warming effect on the climate because not only do they scatter sunlight, but they also absorb it, and Kellogg believed the latter effect was stronger than the former.  However, based on up-to-date climate research, aerosols certainly have a net cooling effect, and possibly a very strong one.

Kellogg (1979) Temperature Prediction

In the paper, Kellogg predicted future polar and global surface temperature changes (Figure 1).

kellogg prediction

Figure 1: Kellogg (1979) average polar and global temperature predictions based on exponential CO2 growth (high) and decreasing growth rate (low).  Gray region represents the approximate global temperature over the previous 1,000 years, and the dashed line represents the approximate average global temperature if humans had not increased atmospheric CO2.

Strangely, Kellogg predicted that future temperatures will increase in linear fashion, even though he projected essentially the same exponential atmospheric CO2 increase as Broecker did in his 1975 study.  We digitized Kellogg's "high" predictions, since CO2 has increased at a similar exponential rate to this scenario, and compared it to the Wood for Trees Temperature Index (a composite of GISTemp, HadCRUT3, UAH, and RSS temperature data sets) (Figure 2).

kellogg comparison

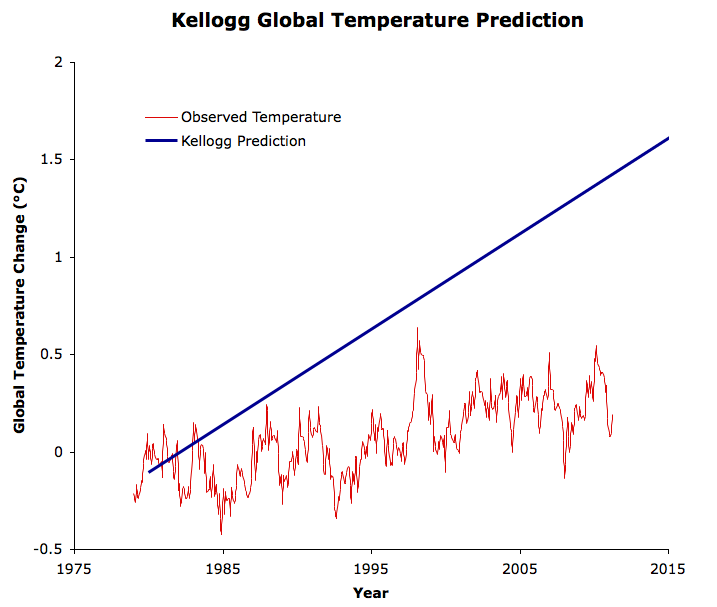

Figure 2: Kellogg global temperature prediction vs. observed temperature changes according to the Wood for Trees Temperature Index.

Kellogg's Flaws

Clearly Kellogg significantly overestimated the ensuing global warming - much more so than Broecker a few years earlier.  So what went wrong?  Kellogg stated that the climate sensitivity in most models was consistent with Broecker's:

"The best estimate of the "greenhouse effect" due to a doubling of carbon dioxide lies between 2 and 3.5°C increase in average surface temperature (Schneider 1975, Augustsson & Ramanathan 1977, Wang et al 1976), and both the models and the record of the behavior of the real climate show that the change in the polar regions will be greater than this by a factor of from 3 to 5, especially in winter"

This climate sensitivity is also broadly consistent with that of today's climate models of 2 to 4.5°C for doubled atmospheric CO2.  However, Kellogg's temperature prediction used a model with higher sensitivity than his above stated range:

"When the level of carbon dioxide has risen to 400 ppmv from its present 330 ppmv, the rise in average surface temperature is estimated to be about 1°C.  These figures refer to the effect of carbon dioxide alone"

An average global temperature response of 1°C to a CO2 increase of 330 to 400 ppmv corresponds to a climate sensitivity of 3.6°C.  However, Kellogg assumed that this temperature response would be instantaneous, with the average global temperature warming 1°C by the time atmospheric CO2 levels reached 400 ppmv (by the year 2011 in his estimation).

An instantaneous temperature response represents a transient climate sensitivity, which according to current climate research, is approximately two-thirds as large as equilibrium climate sensitivity.  Therefore, the equilibrium sensitivity employed in Kellogg's prediction is approximately 5.4°C, which is quite high, and above the IPCC likely range of equilibrium climate sensitivity values.

Kellogg also included the warming effects of other greenhouse gases (such as methane) in his model, but did not include the cooling effects of aerosols (which as noted above, Kellogg believed had a net warming effect as well).  By including the warming effects of other greenhouse gases, the equivalent CO2 concentration in Kellogg's model reached 400 ppmv by 2000, causing him to overestimate the rate of warming even further.

It's important to note that because Kellogg's prediction was linear while the actual temperature increase will be exponential, the further ahead in time we go, the more accurate Kellogg's prediction will become.  In 2050 it will be less unsuccessful than in 2011, but due to the high sensitivity of his model, the actual temperature will still be below Kellogg's prediction.

Kellogg's Success

Kellog was quite accurate in one aspect of his prediction: polar amplification.  Average Arctic surface temperature has increased approximately 3°C since 1880 and approximately 2°C since 1970.  This is a warming rate approximately 3.6 times faster than the average global surface warming, which is within Kellogg's predicted polar amplification range of a factor of 3 to 5.

Lessons Learned

Although his global warming prediction was inaccurate, we can learn a great deal from Kellogg's work.  The reasons for his inaccuracy were:

  • The climate sensitivity in Kellogg's model was a bit higher than today's best estimate to begin with.
  • Kellogg's model neglected the thermal inertia/lag of the oceans, and as a result, was much more sensitive than today's climate models (at least in the short-term).
  • Kellogg assumed a linear temperature increase in response to an exponential CO2 increase.
  • His projected atmospheric CO2 increase (400 ppmv by 2011) was a bit more rapid than the actual CO2 increase since 1979.
  • Kellogg modeled the warming effects of non-CO2 greenhouse gases, but did not model the cooling effects of aerosols.  In fact, he thought aerosols would have a net warming effect, which we now know is not the case.
  • The main lesson to take away from this study is that Broecker's model - with a transient climate sensitivity of 2.4°C and an equilibrium sensitivity of approximately 3.6°C - predicted the ensuing global warming much more accurately than Kellogg's model - with a transient sensitivity of 3.6°C and an equilibrium sensitivity of 5.4°C for doubled CO2.

Implications

The good news is thus that while there is no credible evidence that climate sensitivity is low, it does not appear to be exceptionally high.  The bad news is that it still appears to be close to the IPCC most likely value of 3°C for doubled CO2, which still means we're in for some nasty consequences if we continue on a business-as-usual path.  At the end of his paper, Kellogg addresses the challenges we face:

"Action on the part of the community of nations could only ensue if two things occurred: first, the climatologists, economists, social scientists, and politicians must understand the future clearly enough to decide that a global warming would indeed be too costly to mankind as a whole to be "acceptable" (a value judgment in the last analysis); and, second, there must be the international machinery to make the final decision to act and to enforce the decision.  No such machinery exists, nor do we even see how to set it up"

While the first criterion has essentially been met, and there is widespread agreement amongst all the listed parties that continued global warming presents an unacceptable risk, enforcing the decision to reduce global carbon emissions internationally remains a major challenge which we have begun to address through international climate conferences.  But we still haven't quite cracked that nut, and time is running out.

0 0

Bookmark and Share Printable Version  |  Link to this page

Comments

Comments 1 to 10:

  1. Nice post, which illustrates the way in which science makes progress - formulate a theory, generate testable predictions, see if predictions pan out, refine theory in light of observations, repeat until convergence (or paradigm-shift).

    The difference between Kellogg's prediction and (say) Easterbrook's is that it is based on physics, Kellogg knew why he expected a rise in temperatures and could quantify it, rather than put it down to cycles with a suggested cause (PDO), but without a quantifiable mechanism. As a result we can learn from Kellogg's flawed projections, but we won't learn much about climate should Easterbrook's projections proved flawed (which IMHO is very likely).
    0 0
  2. Dana

    Agreed, nice post and nice series. I suggest though that we should distinguish between Charney Equilibrium Climate sensitivity which includes only relatively fast feedbacks and Earth System Sensitivity which includes slow feedbacks. Maybe Kellogg's only mistake was the timing. :+)
    0 0
  3. Thanks Dikran and Tony. I believe in most cases we're talking about Charney equilibrium sensitivity, Tony. If I'm not mistaken, few climate scientists outside of Hansen spend much time looking at Earth System Sensitivity.
    0 0
  4. Under lessons learned, the 5th bullet point is a direct consequence of the 2nd. Perhaps it should be made a sub-item under the 2nd bullet point.

    I.e., by assuming no lag, one gets both that the instantaneous sensitivity = the equilibrium sensitivity instead of being only 2/3 of it, and a linear temp increase from an exponential CO2 increase.
    0 0
  5. Dana, actually I agree with Tony that at a minimum, the first use of "equilibrium" in such an article should be footnoted that it's Charney, not Earth System, and here on SkS, that footnote could point to a full article on the difference. Paleoclimatologists have to think in terms of Earth System sensitivity, so there are a few articles around where that sensitivity is mentioned or implied. Someone new to the field (e.g. a member of the public, new to SkS) could get confused depending on which articles they'd read.
    0 0
  6. BTW, overall this is well written, and an excellent illustration of the way researchers advance a field - just as Dikran pointed out. I posted two very small (hopefully constructive) criticisms, but I'm certainly not criticizing in general.
    0 0
  7. Thanks GFW. We actually have intended to do a post on the various measures of climate sensitivity. I'll check on the status of that, now that you mention it.
    0 0
  8. How refreshingly honest! Analyze your predictions and correct as necessary. Must be a new left-wing conspiracy tactic. Isn't it just easier to never-be-wrong in the first place?
    0 0
  9. Artful Dodger: yes, it's much easier to never-be-wrong. I know a few people like that, they seem quite happy that way, right up until they come face-first with something that flatly contradicts their opinion. Then the dancing begins, as they try to somehow reconcile the new incontrovertible facts with their contradictory position.

    Of course, this isn't a new left-wing conspiracy tactic at all, just a very old one. That is, if you consider the scientific method to be left-wing and conspiratorial... (and we certainly know there are plenty of people out there who do assert that equivalence!)

    I'll add that I'd also like to read a nice article about the inter-relationship between different sorts of equilibrium & sensitivity & slow/fast feedbacks.

    Just in case you SkS authors were sitting around twiddling your thumbs, or something... :-D
    0 0
  10. The site is Skeptical Science - we're real skeptics. Although it had a strong physical basis, Kellogg's prediction had some problems which are useful to learn from. Those who don't learn from past mistakes are doomed to repeat them. Easterbook comes to mind.

    James Wight is going to try and work on a post detailing the various measures of climate sensitivity this weekend.
    0 0
