Ocean Acidification: Corrosive waters arrive in the Bering Sea

Posted on 14 December 2011 by Rob Painting

You've probably read it before, some aspect of global warming is happening much faster, or sooner than anticipated by the scientific community. Well, this is one of three blog posts that continue in that vein. This time the bad news is corrosive seawater brought about by global warming's evil twin - ocean acidification. Something once considered to be some decades away is already here, and may be killing marine life.

A number of recently published scientific papers (Feeley [2010], Pfister [2011], Mathis [2011a], and Mathis [2011b]) have revealed that, rather than being some far-off future threat, corrosive seawater (from ocean acidification) is making its presence felt, both in the coastal waters of the US/Canadian North Pacific, and the eastern Bering Sea. As well as putting the finishing touches on the struggling oyster farming industry in the US states of Oregon and Washington, ocean acidification is likely to seriously impact the valuable US fishing catch, almost 50% of which (by weight) comes from the Bering Sea. See figure 1.

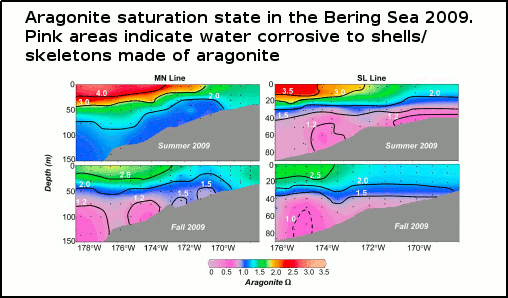

Figure 1 - Observations of aragonite (shown in colour) and calcite (shown in black with contour lines) saturation states along the transect lines of two oceanographic voyages in the summer and fall of 2009. Pink indicates regions corrosive to aragonite shells/skeletons, and the dashed contour line indicates an area corrosive to calcite shells (a less easily dissolved shell-building material). From Mathis (2011b)

OA is definitely not OK

Not only has the burning of fossil fuels increased the level of carbon dioxide in the atmosphere, but almost half of that carbon dioxide has dissolved into the ocean, increased acidity by around 30% (over pre-industrial values) and, crucially for shell-building marine life, it has lowered the concentration of carbonate ions, which they use to build their chalky shells.

Typically, the upper oceans are supersaturated with respect to calcium carbonate (chalk), which simply means there are more than enough carbonate ions in seawater for shell-building. The 3 forms used in shell-building, in descending order of solubility (a measure of how easily they dissolve) being, high-magnesian calcite, aragonite and calcite.

In extreme cases, once the saturation state of calcium carbonate in seawater falls below a value of 1 (undersaturation), seawater frequently becomes corrosive to shells or skeletons made of that particular material. For example, aragonite undersaturation means seawater is corrosive to magnesian-calcite (being more soluble) and aragonite shells, but not calcite, whereas calcite undersaturation means seawater is corrosive to all 3 forms.

Needless to say, this corrosiveness puts the survival of affected marine life into question. Which is not to say that they instantly begin to dissolve, because many adult marine creatures are still able to build shell material in internal chambers sealed off from the surrounding seawater, even as corrosive waters eat away at the outer shell. But they do so at a hugely reduced rate, build weak and deformed shells, and both adult and juvenile survival for many, but not all, marine life, is lower.

Increasing acidity in the Bering Sea puts fishing industry in peril

The eastern Bering Sea is a vast shallow coastal region off Alaska which is covered by sea ice in the cooler months. Mathis (2011b) carried out analysis of seawater samples collected along two transect lines (paths) from ship-based surveys over spring, summer, and fall in the eastern Bering Sea in 2009. They also collected and analysed cores from sea ice in the area. What they found was that subsurface waters over much of the continental shelf (i.e shallow seas) were seasonally corrosive to aragonite shells, up to 40 metres from the ocean surface. This acidification was worse than previous years, and was due to a combination of factors both natural and man-made.

Firstly, inputs from deep water upwelling, rivers and melting sea ice over warmer months flush low pH (more acidic) water into the eastern Bering Sea, lowering saturation states. But this is offset by the warm season bloom of phytoplankton (microscopic marine-based plants) near the sea surface, which soaks up a lot of carbon dioxide through photosynthesis, and therefore acts to elevate pH (making it less acidic). In effect this drawdown of CO2 into living tissue creates a strong seasonal carbon sink in surface waters, because it the dominant component.

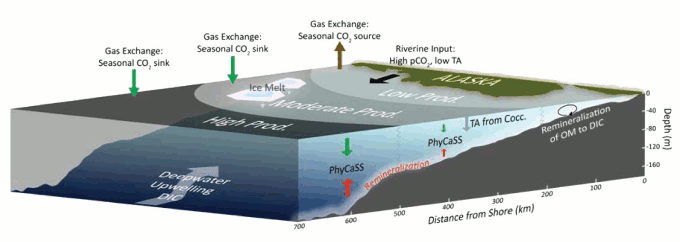

Figure 2 - Generalized description of the processes affecting the carbonate chemistry of the eastern Bering Sea. Biological activity (especially phytoplankton growth and decay) and mixing processes create 3 zones of surface productivity. TA=total alkalinity, and PhyCaSS=phytoplankton-carbonate saturation state. From Mathis (2011b).

The corrosive seawater down near the bottom (figure 1) comes from the phytoplankton (and other organic matter) when they die and sink to the seafloor (phytoplankton have a lifespan often measured in a days). When bacteria begin to break down the bodies of the dead phytoplankton, the carbon dioxide is released, making the bottom water more acidified to such an exent that it becomes corrosive to aragonite, and at times to calcite too. Satellite-based imagery of phytoplankton blooms were seen to match areas of high pH in surface waters, and low pH near the bottom, evidence which supports this long-known transport of carbon to the depths by living things (the biological carbon pump).

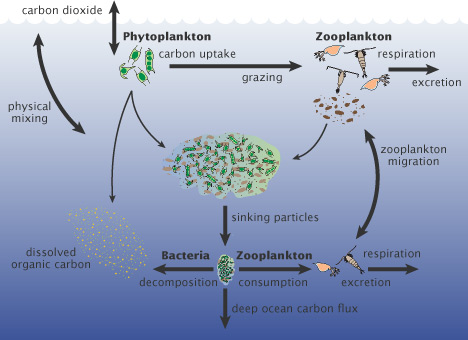

Figure 3 - simple version of the biological carbon pump. Image from the NASA Earth Observatory

The man-made contribution to change in the eastern Bering Sea is obviously through fossil fuel burning. Although no local measurements were available, the authors made an estimate based upon the north Pacific waters, which feed into the eastern Bering Sea shelf, and where man-made contributions are measured. They estimated that without the human input of CO2, calcite would have been supersaturated all year at all locations, and aragonite supersaturated everywhere, bar one location (the bottom outer shelf) in fall.

In the concluding remarks of their study, the authors state:

"As the anthropogenic CO2 inventories continue to increase in these waters, the saturation states will be further suppressed going forward in time"

and

"........and the Bering Sea will be persistently undersaturated with respect to aragonite likely by mid-century, with broad regions of seasonal calcite undersaturation following later"

So, rather than being a temporary phenomenon lasting for several months at a time, as it is now, human fossil fuel CO2 will lead to both expansion of, and longer periods of corrosive waters, until the entire water column is persistently corrosive.

Sorry ma'am, no fish today tomorrow?

What does this all mean for the lucrative fishing industry based in the Bering Sea? It's too early to say for certain. The dire threat posed by ocean acidification, rather embarrassingly, has only crept into mainstream scientific awareness in the last decade or so. Therefore few long-term records or baseline studies exist, and marine scientists are, more-or-less, scrambling to quickly find out the implications.

Regardless, there are some studies which hint at a bad outlook for the Bering Sea. A keystone species (major player) of the Bering Sea foodweb are pteropods, tiny swimming sea snails, or "sea butterflies," which feed upon phytoplankton and zooplankton. These are a major food source for the commercially important pollock and salmon fisheries, especially in their juvenile stages.

Feeley (2004) found that the shell of these pteropods dissolved when exposed to seawater undersaturated in aragonite. Comeau (2010) also witnessed corrosive waters dissolving the shell of a Mediterranean pteropod, and found that it was even able to survive (in the protected study environment) without a shell, although Comeau (2011) point out that it's highly unlikely that such shell-less 'sea butterflies' would survive in a natural environment. But perhaps of greater relevance is Lischka (2011), whose authors observed that not only did aragonite undersaturation dissolve the shells of a common Bering Sea pteropod, but it also caused higher rates of mortality, as did elevated temperatures (which are occurring in the Bering Sea, in response to global warming).

Figure 4 - scanning electron micograph of pteropod Limacina helicina shell reared at 3°C and in aragonite undersaturated seawater. Magnification and scale bars are shown. The shell is severely corroded by aragonite undersaturation. From Lischka (2011).

Therefore one of the 'foundation blocks' of the Bering Sea ecosystem might be under severe threat with the projected expansion and intensification of corrosive waters and ocean warming, and the depletion of such a key food source will very likely reduce fish populations.

The acid test

So to summarize the key points:

  • Rather than some far-flung concern for future generations, ocean acidification is already here and affecting marine life.
  • In the near-polar regions, such as the eastern Bering Sea, natural factors accelerate the 'unnatural' fossil fuel-derived input of carbon dioxide into seawater.
  • These natural factors include: cold water being able to absorb more CO2, and melting sea ice, and thaw over land, flushing more acidic water into the coastal Bering Sea. But the most significant contributor is the marine 'carbon pump', the export of CO2 to the seafloor through the 'rain' of organic debris from phytoplankton blooms and subsequent die-off. This greatly speeds up acidification near the seafloor.
  • Mathis (2011b) calculated that, without human CO2 contributions, the eastern Bering Sea would not have reached calcite undersaturation, and would have been aragonite undersaturated in Fall, at one location only. Therefore these corrosive waters are ultimately the result of human activities.
  • If phytoplankton blooms increase, or further melt-induced warming feeds more nutrients into the sea, (from organic matter flushed out of rivers, stimulating such blooms), then acidification in this region could accelerate.
  • Further fossil fuel burning will eventually cause subsurface waters to be persistently corrosive, and deep winter mixing will ensure that the entire water column is also persistently corrosive. This is likely to happen by mid 21st century.
  • The eastern Bering Sea is one of the most productive seas on Earth, and these waters provide almost half of the US fish catch.
  • Although research on the effects of ocean acidification on local marine life is almost non-existent, one of the foundation blocks of the local food web, the 'sea butterfly,' has an aragonite shell that dissolves in corrosive seawater. Furthermore, lab experiments show that corrosive and also warm seawater both contribute to higher mortality. Therefore projected acidification, and ocean warming may have profoundly negative consequences for the area, and for the United States fishing industry.

Next - Part 2: Corrosive water in the US/Canadian North Pacific: is it killing oysters?

Related SkS posts: OA not OK seriesAcidification:Oceans past, present & yet to comeOcean acidification: Some Winners, Many LosersOcean acidification: global warming's evil twin and Great Barrier Reef Part 3: Acidification, Warming, and Past Coral Survival.

0 0

Bookmark and Share Printable Version  |  Link to this page | Repost this Article Repost This

Comments

Comments 1 to 29:

  1. Thanks for this very educational post. Slightly off topic but there has to be a place at Skeptical Science to mention this educational asset: Serendipity gives us a treasure trove for educators. Does SkS have a way to bring this to broader notice?
    0 0
  2. To the list of arctic environmental pressure you can add massive outgasing. Warning! Dont read the following if you are depressive!

    http://www.independent.co.uk/environment/climate-change/shock-as-retreat-of-arctic-sea-ice-releases-deadly-greenhouse-gas-6276134.html
    0 0
  3. Thanks for the update on ocean acidification. I look forward to the next post on oysters in the Pacific Northwest. A couple of editorial comments on this post:
    1. "colder water being able to absorb more CO2" -- the water isn't getting colder, so "cold water" may be less confusing.
    2. "further melt-induced warming feeds more nutrients" -- not sure what is meant here ... perhaps warming-induced melt increases run-off?
    3. "warm seawater both contribute to higher mortality" -- could you expand on this? By what mechanism does warmer water influence mortality? Is it just quicker life cycle turnover or is it higher metabolism interacting with carbonate undersaturation?
    Thanks!
    0 0
  4. Yvan, I wonder how much of the methane is converted to CO2 before it bubbles to the surface? Trying to look on the bright side, perhaps these regions provide a window to the future to see how higher oceanic CO2 concentrations can be expected to affect these productive ecosystems.
    0 0
  5. "Trying to look on the bright side, perhaps these regions provide a window to the future to see how higher oceanic CO2 concentrations can be expected to affect these productive ecosystems."

    Yes, but this is not the kind of experiment I think we should do!
    0 0
  6. Steve L @ 3 - Points 1 & 2 fixed. Thanks.

    3. Higher water temperatures ramp up metabolic processes in the 'sea butterfly', which means they chew through their energy reserves (lipids) much quicker. In this particular experiment (Lischka [2011]) the sea butterflies were not fed. It's a bit of a no-brainer, but it is relevant because this species overwinters and relies on stored body reserves to last through winter when there is no food available.

    This animal has a 1 year life cycle, and exists in a larval form prior to overwintering. Warming of the sub-surface ocean suggests they'll be less likely to survive the winter, and continue to develop into mature adults (that process requiring the considerable expenditure of energy).

    But this all depends, of course, on how the pattern of ice cover (among other things) responds to warming in the future. Anomalously warm patches in the sub-surface ocean over autumn/fall are already being observed though, as detailed in Lischka (2011), and at a time when the sea butterfly was in a pre-wintering phase, and likely to have ceased feeding.
    0 0
  7. I am afraid it is not quite true to say
    In extreme cases, once the saturation state of calcium carbonate in seawater falls below a value of 1 (undersaturation), seawater becomes corrosive to shells or skeletons made of that particular material
    In a strictly thermodynamic sense it is true. However, life is tricksy; omega <1 is a precondition but does not automatically cause CaCO3 dissolution.

    The calculation of omega is itself non-trivial under some ocean conditions but it has been known for nearly 40 years that aragonite sediments (pteropods) can persist in significantly undersaturated water. In these cases the dissolution is controlled by kinetic effects like surface area and also varies by organism.

    I mean, really, since aragonite is more soluble why is it used at all? For the answers stay tuned. We have a few other irons in the fire that are keeping us busy at present but we will return with more later.
    0 0
  8. Doug, I figured you'd arrive out of left-field, like you'd seen some kind of bat-signal (shrimp signal?) and pull me up on that simplification. I'll tweak it slightly.

    "I mean, really, since aragonite is more soluble why is it used at all?"

    I figured it's like humans building houses, why build it to last when you can build it cheap? Look forward to your future posts on ocean chemistry, by the way.
    0 0
  9. Rob Painting:

    Kudos on an excellent article. It could be made even better if you were to add an introductory paragraph that captures the essence of this article and explicitly let's the reader know that it is Part I of a three part series. While your initial paragraph covers this ground, it does so in a rather oblique manner.
    0 0
  10. Also, kudos on your bullet point summary of the article under the heading, "Acid Test." Summaries like yours should be standard fare for all SkS articles.

    Also, thanks for including the "Related Reading" tab. This simple device makes it much easier for readers to navigate their way through the thick forest of SkS posts.
    0 0
  11. Rob, thanks for #6. I'm guessing that #7 has something to do with replaceability -- when aragonite won't do, then they switch to calcite. I read somewhere that different parts of sea urchins use different CaCO3 minerals (tips versus bases of spines?), so it shouldn't surprise us that some animals can switch. Looking forward to more, as usual.
    0 0
  12. An interesting warning of the dangers to the fishing industry posed by Ocean Acidification – though arguably understated.

    Analysis of ice cores shows that alkalinity is now lower than it has been for 600,000 years and is continuing to fall. The average pH of ocean surface water has fallen by 0.1 of a unit since the industrial revolution and by the end of this century is predicted to have fallen by 0.35 - 0.5 units. The rate at which pH is now falling is estimated to be over 100 times greater than at any time during the past 100,000 year.

    The problems are both the reduction of alkalinity (falling pH) and the speed with which it is happening. The former damages calcifying marine life, the latter gives it no time to adapt. The result: Serious damage the marine environment and adverse affects on the ability of crustaceans and fish to survive.

    As CO2 entering the atmosphere continues to rise, increasing amounts of the gas are dissolved by seawater. In colder waters CO2 is dissolved more readily and reacts with water to form carbonic acid. In both cases, rising quantities of CO2 pose serious and growing problems for calcifying marine animals such as algae, corals, plankton and molluscs, by reducing the concentration of calcites present in seawater.

    Pteropods (Thecosomata), a small snail form of plankton are particularly vulnerable to this change since they make their shells from Arogonite which is 50% more soluble in water than other calcites. Reduced presence of this material makes it more difficult for juvenile pteropods to secrete and maintain robust protective shells. This greatly increases their vulnerability. So serious is this problem that marine scientists predict that Pteropods are likely to become extinct within 40 years.

    Pteropods are present in all the oceans. Such a wide variety of fish depend on them as their main source of nourishment and consume them in such vast numbers that they have been appropriately described by Dr. Hoffmann (University of California) as ‘chips of the sea’.

    The danger (and it is a very real one) is that loss of pteropods will have an effect so adverse as to create a significant break in the marine food chain.

    Millions of humans depend on these fish, or other fish which prey on them, as their main, often their only source of protein. At the very least, extinction of the Pteropod will result in major depletion of commercial fish stocks and growing scarcity, even their total loss to those who depend on them most.
    0 0
  13. John Hartz - thanks. I only include the bullet-points for too-long posts, otherwise the takeaway points may be lost on readers. I don't think mentioning that this is one of 3 posts in the opening paragraph qualifies as oblique, but YMMV.

    Agnostic - "An interesting warning of the dangers to the fishing industry posed by Ocean Acidification – though arguably understated."

    Perhaps, but I'm kind of constrained by what the science has to say on this. The next post on ocean acidification (not one of the 3-part series), will hopefully shatter a bit of complacency on this topic. Ocean acidfication is fatal to (some) fish larvae.
    0 0
  14. For information about three additional specific impacts of ocean acidification, check out:

    “AGU Fall Meeting: the (pH) lowdown on ocean acidification” posted on Environmental Research Letter’s Environmental Research Web.

    To access this informative article, click here.
    0 0
  15. Rob Painting:

    Your initial paragraph includes the following sentence:

    "Well, this is one of three blog posts that continue in that vein."

    I did not know this sentence meant this article is the first of a three part series until I read the bottom tag. You might have been referring to two other existing blog posts in the above sentence.

    This matter is insignificant in the scheme of things, but I just wanted to explain my rationale for my comment.
    0 0
  16. Rob Painting:

    I also believe that an introductory paragraph to a technical document such as your article should include the major take-away point(s) of the article.
    0 0
  17. No worries John, any constructive criticism to improve my writing can only be a good thing. Duly noted and taken on-board.
    0 0
  18. Rob, I don't think I'd write off the oyster industry. Instumentation has improved to the point where aragonite saturation can be monitored real time at the water intakes for the hatcheries . This allows much improved success in culture of spat because the hatcheries can adapt to pH changes and to some degree modify seawater TA when necessary. Adult oysters are doing fine in current conditions in the Pacific Northwest. I am a commercial fisherman for 40 years and in no way would I dismiss the threat of O/A . I just think we need to acknowledge the successes we have along the way in what is going to be a very long battle. The Oyster industry has really pulled together and made some real progress so rather than writing them off you should go eat some oysters tonite. Thanks for the blog thanks for the hard work and thanks for taking on O/A. Bruce
    0 0
  19. bulla @19, you cannot be sent any more emails requesting your comments as you were never sent any emails requesting your comments to be begin with.

    I must say I am growing tired of this childish game by deniers in which they turn up, post obviously off topic comments in the expectation of being moderated for violation of the comments policy, and then lie about what happened to them. In Bulla's case they have gone one further by posting entirely nonsensical comments.

    The requirements for posting here are simple. In essence they come down to two requirements - by relevant and be polite. Apparently that is too onerous a task for deniers who would rather rely on irrationalism, and abuse.
    0 0
  20. I thought I made it very clear that climate ghange is indeed very real
    0 0
    Moderator Response: [Rob P] - Please note the comments policy. If you wish to discuss something firmly grounded in climate science, then good. Pseudo-scientific bafflegab is not science.
  21. your fraternaty has been show over and over again to be so wrotten to it very core of its existance and that even your own peare review has said that 85% of papers submitted are Ither lyes or plagerized or just plain faulserfied
    0 0
  22. Moderators, can I request that Bulla @21 be allowed to stand so that casual readers can see just the sort of ridiculous, slanderous drivel that Bulla vomits forth, and understand full well why it is in complete violation of the comment policy, and justifiably removed.
    0 0
  23. I should note that bulla's post of 9 Jan, 00:27 AM is the 28th post of similar low quality, all in violation of the comments policy that the moderators have had the displeasure of having to deal with. I personally want to thank them for their sterling efforts in keeping the threads from becoming clogged with this utter tripe, thereby allowing coherent discussion to flourish.
    0 0
  24. bulla @24, a google scholar search for "atomics" turns up the term as a part of trade names only, so yes, atomics is not a science (nor an English word).
    0 0
  25. your usupition of my comments being of low quality that dosent leave much room for you, given the world wide understanding of your fraternaty which is at a bottom low of crdability, below on the ratings world wide of used car salesmen
    0 0
    Moderator Response: [muoncounter] Repetition of nonsensical claims does nothing for your credibility. Nor does continual misspelling. Enough.
  26. so now we have it from the horses mouth atomics is not a science
    0 0
    Moderator Response: [muoncounter] Atomic science is a science. 'Atomics' was used by Asimov in the Foundation series as a catch-all for anything using atomic power.

    Please note that posting comments here at SkS is a privilege, not a right. This privilege can and will be rescinded if the posting individual continues to treat adherence to the Comments Policy as optional, rather than the mandatory condition of participating in this online forum. Moderating this site is a tiresome chore, particularly when commentators repeatedly submit offensive or off-topic posts. We really appreciate people's cooperation in abiding by the Comments Policy, which is largely responsible for the quality of this site. Finally, please understand that moderation policies are not open for discussion. If you find yourself incapable of abiding by these common set of rules that everyone else observes, then a change of venues is in the offing. Please take the time to review the policy and ensure future comments are in full compliance with it. Thanks for your understanding and compliance in this matter.

  27. is it that you are challenged buy the usumptioms that i posercute
    0 0
    Moderator Response: [muoncounter] Given that you feel free to 'override the known laws of physics,' not a bit. Further comments of this sort will be deleted without discussion. Adieu.
  28. As someone who works closely with language every day, let me strongly suggest that "bulla" is not being honest with his/her "dialect." It would be extraordinary if someone actually managed to misspell some of the words bulla has misspelled in the way that they are misspelled. Bulla is most likely a troll looking for someone to go "ivory tower" on him/her.
    0 0
  29. Agreed, DSL. Bulla was here simply to troll for reactions.
    0 0
