The Ridley Riddle Part Two: The White Queen

Posted on 7 August 2011 by Andy Skuce

 This is the second of three articles on the climate contrarian Matt Ridley. Part One is here

In 2010, David MacKay wrote a letter to Matt Ridley in response to an op-ed article by Ridley published in The Times. MacKay’s letter and Ridley’s reply to it are both posted on the Ridley’s Rational Optimist blog. In this article, I am going to focus on Ridley’s reply, not because it is a particularly interesting or original addition to the skeptical canon, but because I believe it is revealing about the mindset of a climate contrarian.

David MacKay is a physicist but not a climate scientist. He is the author of the book Sustainable energy - without the hot air, which examines the daunting challenge that the United Kingdom faces in decarbonizing its energy supply. It’s a must-read, entertainingly written, easy-to-understand work, and can be downloaded for free.  MacKay was appointed in 2009 to be Chief Scientist at Britain’s Department of Energy and Climate Change. His letter to Ridley raises points that will be familiar to regular readers of Skeptical Science; he cites recent evidence of climate change and discusses the analogue of the Paleocene-Eocene Thermal Maximum and the central question of the likely range of climate sensitivity. MacKay also mentions that his personal and professional contact with climate scientists bears no relation to the way they are often negatively depicted on contrarian blogs.

There are three main elements of Ridley’s reply that I want to focus on in this article but, first, I’ll simply list in point form some of the other arguments that comprised the rest of Ridley’s Gish Gallop, along with rebuttal links and brief comments.

Giddy-Up

  • Warming Island. See Andrew Revkin’s Dot Earth article for a good review and an SkS blogpost.
  • Speleothem temperature records (from Watts Up With That).  A rough and ready analysis by Willis Eschenbach that shows that some temperatures over the past 10,000 years were hotter than today. Whether reliable or not, these results are consistent with mainstream science, as reported by the IPCC AR4.

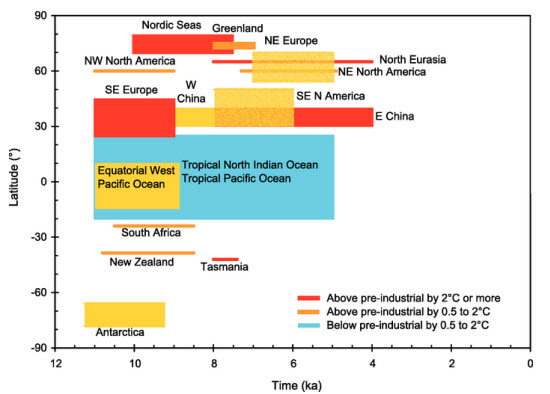

Regional temperature variations from pre-industrial levels plotted against latitude and time before present. IPCC

  • GISP2 curve (from JoNova). Thoroughly debunked by Gareth Renowden.
  • Temperatures sometimes increased faster than now during the last glacial period. Indeed regional temperatures did increase very rapidly during ice-age Dansgaard-Oescher events, probably due to sudden changes in North Atlantic circulation. D-O events have little relevance for the predominantly CO2-driven global warming we are experiencing now during an inter-glacial period, except perhaps that they provide examples of how small changes in external forcings can sometimes lead to intense regional climate changes.
  • Twentieth century temperature increases are caused by adjustments made to instrumental records (WUWT). Debunked by Fall et al. (2011) and the BEST project.
  • CO2 lags temperature in the Vostok ice core record. Discussed here. The time lag in the ice cores is a feature, not a bug; see Spencer Weart’s History of Global Warming. The Milankovitch hypothesis fails quantitatively unless orbital changes provoke major positive feedbacks.
  • Two degrees won’t be bad. Let’s hope so and let’s hope also that two degrees is all we get; discussed hereNational Geographic video.
  • The hockey stick is an artifactHere and here.
  • Previous forecasts of other environmental catastrophes have been wrong. Left as an exercise for the reader.

An Extreme Statement?

Ridley alleges that scientists and bodies like the Royal Society (MacKay is a Fellow) have been complicit in not putting a brake on “politically-inspired extreme statements”.

As an example of an extreme statement, he offers this:

"Earth's climate can only be stabilized by bringing carbon dioxide emissions under control in the twenty-first century.’ That is the opening sentence of a paper in Nature Geoscience last month.  It is shocking that it got past the editors and reviewers. After 4 billion years of climatic volatility, much of it not caused by CO2 but by orbital variations, solar cycles and so on, how on earth are we to `stabilise’ earth’s climate by adjusting just one forcing factor? I refuse to accept that the climate could ever be stabilised, let alone by adjusting one factor. That sentence has no place in a scientific journal."

The article in question, containing the supposed “extreme statement”, is a Nature Commentary article discussing relative contributions of short-lived atmospheric pollutants (black carbon, methane, ozone, nitrous oxide, etc.), aerosols, and longer-lived carbon dioxide. The paper is entirely concerned with the climate in the twenty-first century, so the authors’ supposed failing to address all aspects of climatic volatility over 4 billion years is not evidence of politically-inspired extremism but is instead utterly irrelevant.  Moreover, the global climate had been relatively stable over a period of ~8,000 years, until humans began burning large quantities of fossil fuels.

Carbon emissions not the main cause of warming in the PETM?

Ridley refers to an article by Zeebe et al (2009) (ZZC 2010) Carbon dioxide forcing alone insufficient to explain Palaeocene–Eocene Thermal Maximum warming. He notes that these authors conclude that “CO2 did not even double during the PETM and that something other than carbon dioxide caused much of the heating.”

ZZC 2010 used ocean chemistry (carbonate dissolution accounting) to constrain estimates of the magnitude of the initial carbon pulse at the PETM to less than 3000 PgC (3000 billion tonnes of carbon). Assuming a baseline atmospheric concentration of CO2 of 1000 ppm, this would result in a concentration of 1700 ppm, less than a doubling. Using a maximum climate sensitivity of 4.5 yields a temperature increase of less than 3.5°C, far less than the estimated range of 5-9°C for the PETM. Zeebe et al conclude that unknown “feedbacks and/or forcings other than atmospheric CO2 caused a major portion of the PETM warming”.

Two points are worth noting:

  • ZZC 2010’s estimates are at the low end of many other estimates; for example, Panchuk et al (2008) also use carbonate dissolution methods to arrive at a minimum 6800 PgC release.
  • ZZC 2010’s results point to unknown effects that further amplify a sudden carbon release. They speculate that one possible cause is the release of trace greenhouse gases, such as methane, caused by the warming that came as a consequence of the initial carbon influx.

It is also perhaps worth recalling (from Part 1) that the ocean chemistry that constrains the size of the PETM release in ZZC 2010 was derided in The Rational Optimist as: “Ocean acidification looks suspiciously like a back-up plan by the environmental groups in case the climate fails to warm: another try at  condemning fossil fuels.” But it is a concept that is apparently safe enough to rely upon if you think it bolsters your argument in another area. (Mark Lynas has recently debated Ridley on ocean acidification, and the UK Ocean Acidification Research Programme provided a briefing note.)

Lukewarm Certainty

In response to MacKay, Ridley claims:

“You say scientists know how big the uncertainties are and that the failure to ensure that uncertainties are reported has contributed to the problem. I agree and I wish that the science establishment had paid this issue more attention. They allowed and encouraged their spokesmen to peddle the very opposite impression.”

Later he quotes again from the Penner et al (2010) paper mentioned previously:

"It is at present impossible to accurately determine climate sensitivity (defined as the equilibrium warming in response to a doubling of atmospheric carbon dioxide concentrations) from past records, partly because carbon dioxide and short-lived species have increased together over the industrial era. Warming over the past 100 years is consistent with high climate sensitivity to atmospheric carbon dioxide combined with a large cooling effect from short-lived aerosol pollutants, but it could equally be attributed to a low climate sensitivity coupled with a small effect from aerosols. These two possibilities lead to very different projections for future climate change."

This expression of uncertainty from the science establishment rather undercuts Ridley’s argument that there is a systemic failure to communicate uncertainty. Ridley also states:

"I do know this though: the IPCC’s estimates of the sensitivity are utterly worthless because they all – all – assume net positive feedback. You are quite right that we do not know that clouds have negative feedback for sure, but there is good evidence that they probably do, and just 2% change in the albedo of cloudiness could reverse all CO2’s marginal effect."

He “knows” that the IPCC estimates are “utterly worthless”; there’s not much equivocation there.  It's important to note that the IPCC does not "assume" a net positive feedback; rather, this is the result generated by every single climate model.  And while the cloud feedback could hypothetically offset all positive feedbacks, there is no indication that it actually will.

Elsewhere in the post, Ridley says he has “no idea” what the climate sensitivity range is but then says: “It could be 1C or lower, it could be 3C, but I think it very unlikely from the latest data that it is going to be as high as 4.5C.” But he neglects to point us to a reference for the “latest data”. Perhaps he is referring to recent global temperature measurements, but without considering the thermal inertia of the deep oceans, as Lindzen and Monckton have done. The IPCC’s transient climate sensitivity, defined as the non-equilibrium global temperature change achieved quickly during an idealized COdoubling scenario, is exactly the same range as Ridley’s.

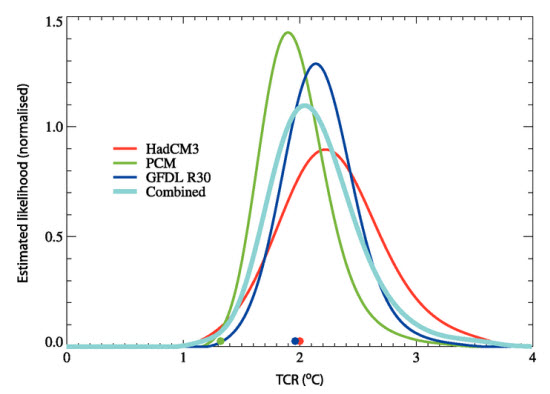

Probability distributions of transient climate response (TCR) from a doubling of CO2.  IPCC AR4

As Bart Verheggen wrote:

"Whereas the existing uncertainty in the science is sometimes put forward as an excuse to continue business as usual, such an approach invariably suffers from viewing this uncertainty going in one direction only: making the problem seem smaller. What about the other direction? What if the risks actually increase faster (in the latter direction) than they decrease (in the former direction)?"

The White Queen

"Why, sometimes I've believed as many as six impossible things before breakfast."

-The White Queen in Lewis Carroll's Through the Looking-Glass

I have presented arguments and examples of Matt Ridley reading into scientific papers only those conclusions that bolster his skepticism about the potential seriousness of climate change. Meanwhile, he ignores the context and conclusions in those same papers that offer his viewpoint no support at all. Also, he quotes blog scientists and other non-specialists as if their opinions were authoritative. It’s hard to imagine in his writings on evolution and genetics that he would ever quote a climate scientist, say, Roy Spencer, as a useful guide to The Evolution Crisis.

In his earlier books, Ridley mostly avoided the pitfall of the Naturalistic Fallacy, in which a natural is is confused with an ethical ought. Many other people who have written about evolution and the nature/nurture debate have not been as fastidious, drawing unwarranted political, ethical, or even spiritual lessons from biology.  In contrast, when it comes to climate, Ridley seems to fall prey to a kind of reverse naturalistic fallacy, in which his political and ethical worldviews influence the particular scientific results he chooses to accept as reliable.

[Edited November 3rd, 2011, updated and added some links]

Part 3 will look at Ridley’s business record to see how Rational Optimism played out in the world of banking.  It will compare the completeness and accuracy of a report that he published with the IPCC reports that he so scorns.

0 0

Bookmark and Share Printable Version  |  Link to this page

Comments

Comments 1 to 8:

  1. "In his earlier books, Ridley mostly avoided the pitfall of the Naturalistic Fallacy, in which a natural is is confused with an ethical ought."

    Interesting that you link to the article on the naturalistic fallacy at Wikipedia.

    According to the article: "The naturalistic fallacy is related to (and even confused with) the is–ought problem, which comes from Hume's Treatise."

    The British philosopher G.E. Moore coined the fallacy and if I recall correctly from reading him more than 30 years ago, Moore doesn't talk about moral "oughts" at all.

    He is merely rejecting the idea that the concept of 'good' can be defined in terms of natural qualities such as pleasure or absence of pain. To define good (a non-natural property) in terms of a natural property is to commit the naturalistic fallacy.
    0 0
  2. According to Wiki: The term "naturalistic fallacy" is also sometimes used to describe the deduction of an "ought" from an "is" (the Is–ought problem), and has inspired the use of mutually reinforcing terminology which describes the converse (deducing an "is" from an "ought") either as the "reverse naturalistic fallacy" or the "moralistic fallacy."

    Yes, my usage was in this loose sense, which is not the original and more correct definition of the term.
    0 0
  3. ridley has a new article up in WSJ, full version at "Hockey Schtick".

    in it he states: »But then the total carbon-dioxide emissions from biological sources—animals, plants, fungi and microbes—dwarf those from fossil fuels and amount to some 800 billion tons a year. So although it is a myth that volcanoes produce more carbon dioxide than fossil fuels do, the natural world far outpaces our cars and factories. Roughly 97% of the carbon dioxide entering the atmosphere each year is from nature, not human activity.«

    but he does note that Ian Plimer's opinion on volcanoes is fringe.

    p.
    0 0
  4. Captain Pithart @3, the fact that you found the article at Hockey Schtick is a bad sign. The triply cherry picked temperature graph across the top of their page clearly shows that they are intent on distorting data for the service of ideology.

    Putting that aside, Ridley's argument is an act of masterful misdirection. At the Earth's surface there are four great reservoirs of carbon, the Ocean, Soil, the biosphere, and the atmosphere. Of these the atmosphere is the smallest. Each is in approximate equilibrium with the others, such that an increase in carbon in one reservoir will result in an increase in the others. In addition, there are seasonal fluctuations in storage in the reservoirs, mostly related to the growth, fall and decay of deciduous leaves in the Northern Hemisphere. The 97% percent of CO2 that Ridley quotes consists almost entirely of flows from one reservoir to another.

    It is as though you where tracking the money trail of a criminal syndicate, and found they frequently transferred large amounts of money between four bank accounts. Such activity would be great for money laundering if the investigators kept their eyes firmly on transfers between the accounts. But a smart investigator would watch for transfers into those accounts from other sources, and out of those accounts to other locations. It does not matter how small a percentage of total transactions those external transfers constitute of the whole, it is they and they alone that tell you where the money is coming from, and where it is going.

    In the natural world, we know a lot about those external transfers of Carbon. We know that some carbon is carried into the ocean depths and forms sedimentary rock, which is then carried into the Earth's interior at subduction zones. We know a small amount is carried back in by volcanoes. And we also know a small amount is carried out by fossilization of animal and plant matter.

    That is it. That is all of the natural "external transfers" of carbon.

    We also know something about their magnitude. We know that the amount of carbon carried out by sedimentation and subduction approximately equals that carried in by vulcanism. We know that that amount is approximately 1/100th of the amount carried in by the burning of fossil fuels by humans. We know the amount carried out by fossilization is about one millionth of that carried in by the burning of fossil fuels. We know that the natural factors are in approximate balance, only increasing the CO2 content of the atmosphere by 25 ppm over the last 8 thousand years, and that with a lot of help from deforestation, and agricultural methane production by human:



    Clearly such processes are not the cause of the 110 ppm increase in CO2 content in the atmosphere over the last 100 years.

    That is the result of human use of fossil fuels.

    If you keep your eye on the "external transfers", that is blindingly obvious, with human consumption of fossil fuels representing approximately 99% of external transfers. So, with a clever piece of carbon laundering, Ridley tries to keep your attention completely focused on the internal transfers. It's a con game. Don't be fooled by it.
    0 0
  5. Here's an analogy that WSJ readers and Matt Ridley might understand.

    The daily turnover on foreign exchange markets is about $4 trillion, of which about 85% involves US dollars. Therefore, about $3.5 trillion US dollars are traded every day, or approximately $700 trillion per year. The US annual budget deficit is about $1.4 trillion or about 0.2% of the amount of US dollars that changes hands on FOREX markets over the same time period.

    From this we can conclude that the US budget deficit is an insignificant problem that we can safely ignore.

    Either that, or we should acknowledge that specious arguments that confuse stocks with flows can lead to absurd conclusions.
    0 0
  6. Andy, your foreign exchange analogy is brilliant.
    0 0
  7. Indeed. It might be worth crafting analogies like this for all the other specious arguments. 8)
    0 0
  8. Penner et al (2010) paper mentioned above:

    "......Warming over the past 100 years is consistent with high climate sensitivity to atmospheric carbon dioxide combined with a large cooling effect from short-lived aerosol pollutants, but it could equally be attributed to a low climate sensitivity coupled with a small effect from aerosols.

    These two possibilities lead to very different projections for future climate change....."



    This seems to me to be a point of some importance.

    They go on to say:

    "....These uncertainties in atmospheric chemistry and physics must be reduced to build an optimal control strategy for short-lived pollutants that affect the climate.

    We propose that, given a focused effort including atmospheric observations and sensitivity studies using climate models, the questions needed to address an optimal strategy can be answered within the time frame of the Fifth Assessment from IPCC, that is, by 2013...."


    I think they come to a very logical conclusion. It seems this would be worth knowing.
